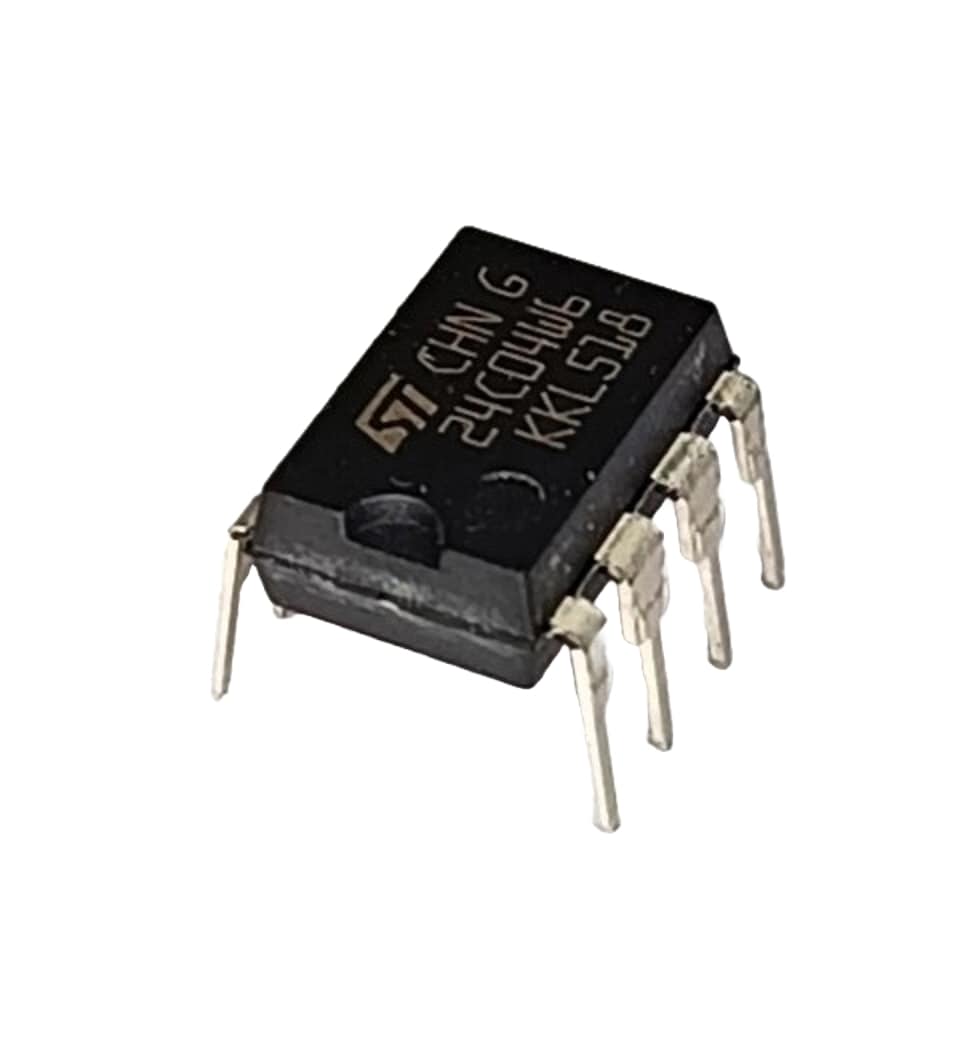

Product Overview 24C04 4k Serial EEPROM IC provides 4096 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 512 words of 8 bits each. The Electrically Erasable Programmable Read-only Memory (EEPROM) IC is a two-wire, 8-Pin device that operates at a voltage range of 1.7 to 3.6V, making it highly suitable for 3.3V systems. It also supports cascading with up to 8 similar ICs for expansion purposes. It works with Serial-Two wire,I2C protocol and hence very easy to interface with most of the MCU and Development boards and requires only two wires to interface. So this EEPROM is very suitable for applications where low-power and low-voltage operations are essential. Max. supply current for this IC is 1mA. Features of 24C04 4k Serial EEPROM Supply Voltage: 1.7V to 3.6V Supply Current – Max: 1 mA Memory Size: 4 Kbit Organization: 512 x 8 Interface Type: Serial, 2-Wire, I2C Maximum Clock Frequency: 1MHz Available in TSOP package Applications It is also used in automotive applications such as airbag control units, engine management systems, and anti-lock brake systems additionally it can be used in various applications such as smart cards, set-top boxes, digital cameras, and other electronic devices. Download 24C04 4k Serial EEPROM IC Datasheet SKU: X3A Category: IC's Integrated Circuits
