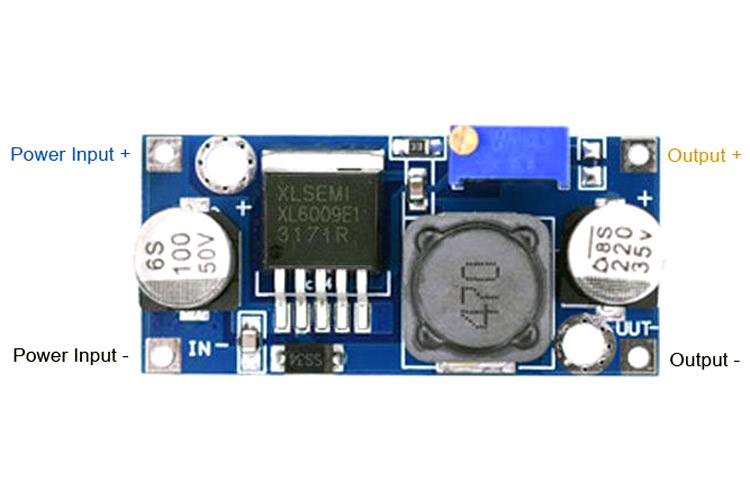

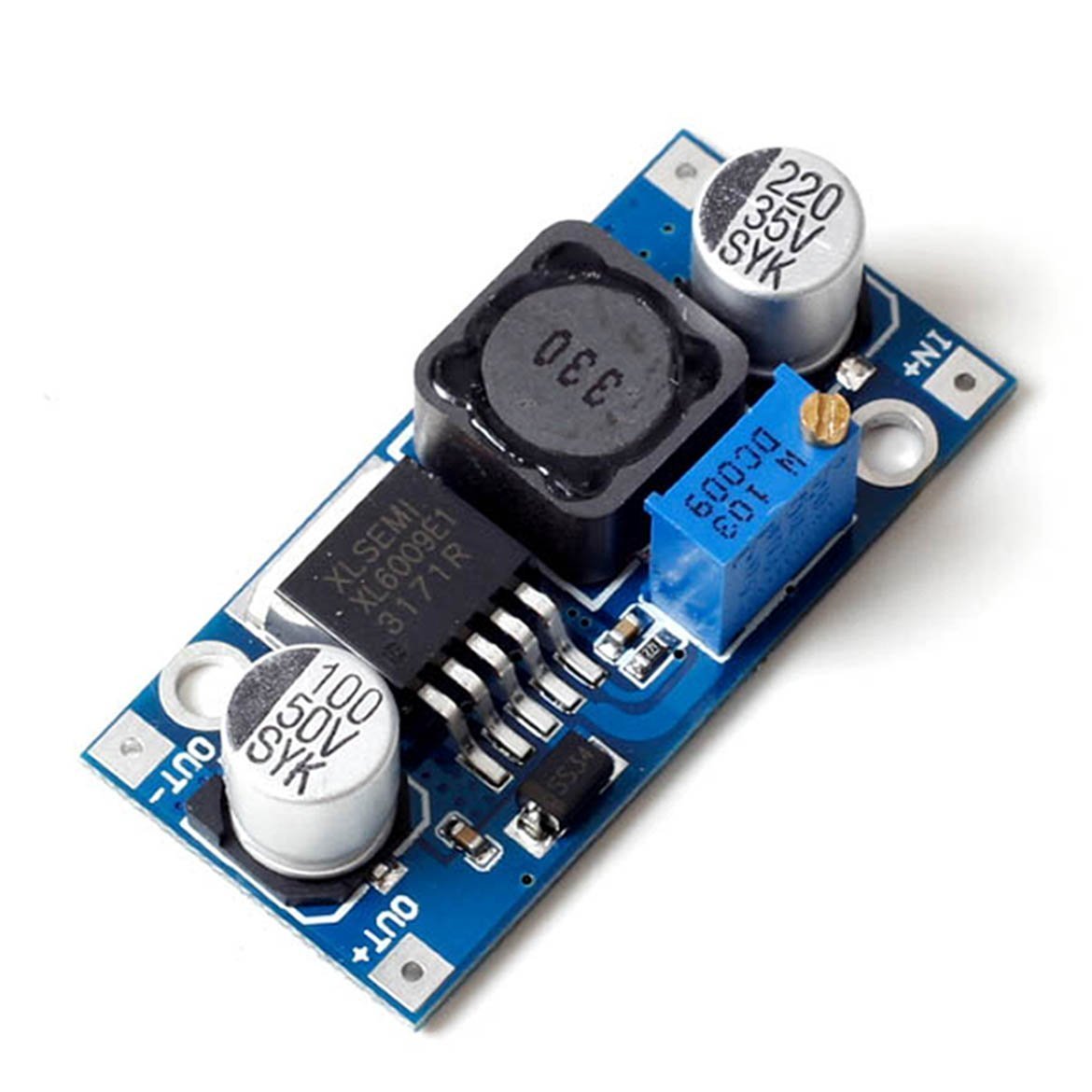

XL6009 DC-DC Step-Up Converter

Step up power supply board with adjustable booster output voltage with high efficiency. Its basically takes an input of 3.3-32V DC and outputs a voltage between 5V to 35V. The board comes with appropriate rectification, Variable resistor/Preset for output voltage setting, filtering circuit, a power indication LED and mounting holes for easy mounting. The Power Supply Mini module Board is the ideal solutions, providing a positive supply at constant out for projects & systems etc.   Specifications: Input Voltage (V): 3 to 32 Input Current(A): 4 Output Voltage(V): 5 to 35 Output Ripple(mV): 50 Efficiency: 94% Switching Frequency(KHz): 400 Load Regulation: ±0.5% Voltage Regulation: ±0.5% Length (mm) : 43 Width (mm) : 20 Height (mm) :12 Feature Low ultra wide input voltage 3 v ~ 32 v (the best is 5 ~ 32 v working voltage range) Low ultra wide output voltage 5 v ~ 35 v Built-in 4 a efficient Mosfet switch tube, make efficiency up to 94 percent (LM2577 current only 3 a) High switching frequency, 400 KHZ, can use the small capacity of the filter capacitor can achieve very good effect, ripple smaller and smaller Operating Temperature: -40 ~ 85 *Image shown is a representation only. SKU: BM0136 Category: Uncategorized Tags: buy xl6009 boost converter, buy xl6009 module, step up converter, step up module
